제품 상세정보
원래 장소: 중국
브랜드 이름: REXROTH
인증: CE ISO 9001
모델 번호: A2FM 시리즈
지불과 운송 용어
최소 주문 수량: 1
가격: nigotiation
포장 세부 사항: 표준 목재
배달 시간: 7일입니다
지불 조건: T/T
공급 능력: 2000년 / 달
표준 또는 비정상: |
기준 |
성능: |
부식 저항성 |
소재: |
금속 |
이동: |
표준, 10~1000 |
모터 타입: |
피스톤모터 |
보증: |
1년 |
조건: |
새로운 |
판매 후 서비스 제공: |
온라인 지원 |
사용: |
석유 |
적용: |
다른 것 |
연료: |
수압유 |
힘: |
유압 |
압력: |
고압, 저압 |
무게: |
22-160kg |
특징: |
고효율 |
이름: |
수압 축 피스톤 펌프 |
표준 또는 비정상: |
기준 |
성능: |
부식 저항성 |
소재: |
금속 |
이동: |
표준, 10~1000 |
모터 타입: |
피스톤모터 |
보증: |
1년 |
조건: |
새로운 |
판매 후 서비스 제공: |
온라인 지원 |
사용: |
석유 |
적용: |
다른 것 |
연료: |
수압유 |
힘: |
유압 |
압력: |
고압, 저압 |
무게: |
22-160kg |
특징: |
고효율 |
이름: |
수압 축 피스톤 펌프 |
BTPS 사용 가능한 브랜드

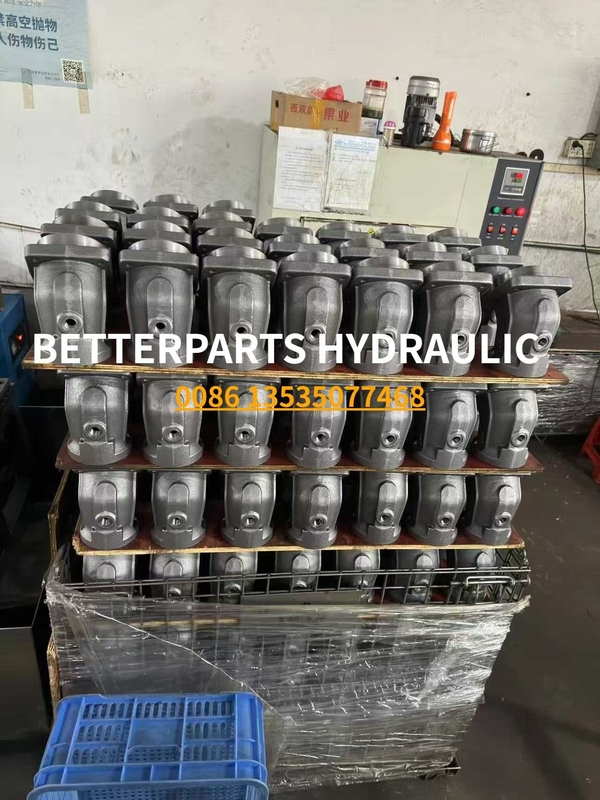

Rexroth A2FM 6X 시리즈 축 피스톤 고정 모터
다목적 고압 모터
크기 5… 1000
최대 400 bar의 공칭 압력
최대 압력 450 bar
개방 및 폐쇄 회로
메트릭 버전
기술 데이터
| 크기 | 5 | 10 | 12 | 16 | 23 | 28 | 32 | 107 | 125 | 160 | 180 | 200 | 250 | 355 | 500 | |||
| 배수량 혁명 당 기하학적 |
VG | cm³ | 4.93 | 10.3 | 12 | 16 | 22.9 | 28.1 | 32 | 106.7 | 125 | 160.4 | 180 | 200 | 250 | 355 | 500 | |
| 공칭 압력 | PNOM | 술집 | 315 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 350 | 350 | 350 | |
| 최대 압력 | pmax | 술집 | 350 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 400 | 400 | 400 | |
| 최대 속도 | NNOM 1) | RPM | 10000 | 8000 | 8000 | 8000 | 6300 | 6300 | 6300 | 4000 | 4000 | 3600 | 3600 | 2750 | 2700 | 2240 | 2000 | |
| Nmax 2) | RPM | 11000 | 8800 | 8800 | 8800 | 6900 | 6900 | 6900 | 4400 | 4400 | 4000 | 4000 | 3000 | |||||
| 입구 흐름 3) | NNOM에서 | QV | L/분 | 49 | 82 | 96 | 128 | 144 | 177 | 202 | 427 | 500 | 577 | 648 | 550 | 675 | 795 | 1000 |
| 토크 4) | PNOM에서 | 중 | nm | 24.7 | 66 | 76 | 102 | 146 | 179 | 204 | 679 | 796 | 1021 | 1146 | 1273 | 1393 | 1978 | 2785 |
| 로타리 강성 | 기음 | knm/rad | 0.63 | 0.92 | 1.25 | 1.59 | 2.56 | 2.93 | 3.12 | 11.2 | 11.9 | 17.4 | 18.2 | 57.3 | 73.1 | 96.1 | 144 | |
| 로타리 그룹의 관성 순간 | JTW | kg · m² | 0.00006 | 0.0004 | 0.0004 | 0.0004 | 0.0012 | 0.0012 | 0.0012 | 0.0116 | 0.0116 | 0.022 | 0.022 | 0.0353 | 0.061 | 0.102 | 0.178 | |
| 최대 각도 가속도 | ɑ | rad/s² | 5000 | 5000 | 5000 | 5000 | 6500 | 6500 | 6500 | 4500 | 4500 | 3500 | 3500 | 11000 | 10000 | 8300 | 5500 | |
| 케이스 볼륨 | 다섯 | 엘 | 0.17 | 0.17 | 0.17 | 0.2 | 0.2 | 0.2 | 0.8 | 0.8 | 1.1 | 1.1 | 2.7 | 2.5 | 3.5 | 4.2 | ||
| 체중 (약) | 중 | kg | 2.5 | 5.4 | 5.4 | 5.4 | 9.5 | 9.5 | 9.5 | 32 | 32 | 45 | 45 | 66 | 73 | 110 | 155 | |
- 개방형 및 폐쇄 회로에서 정수압 드라이브를위한 축 테이퍼 피스톤 로터리 그룹이있는 고정 모터 - 모바일 및 고정 응용 영역에 사용하기 위해 출력 속도는 펌프의 흐름과 모터의 변위에 따라 다릅니다. - 출력 토크는 고압 측과 저압 측의 압력 차별화와 변위가 증가함에 따라 증가합니다. - 제공된 변위를 신중하게 선택하고 실질적으로 모든 응용 프로그램과 일치하도록 허가 크기
| A2FM5/60WPBB030 | A2FM5/60WPBB030J | A2FM5/60WPCB030 | A2FM5/60WPCB030J |
| A2FM5/60WVBB030 | A2FM5/60WVBB030J | A2FM5/60WVCB030 | A2FM5/60WVCB030J |
| A2FM10/61WPAB030 | A2FM10/61WPAB030J | A2FM10/61WPZB030 | A2FM10/61WPZB030J |
| A2FM10/61WPBB030 | A2FM10/61WPBB030J | A2FM10/61WPPB030 | A2FM10/61WPPB030J |
| A2FM10/61WVAB030 | A2FM10/61WVAB030J | A2FM10/61WVZB030 | A2FM10/61WVZB030J |
| A2FM10/61WVBB030 | A2FM10/61WVBB030J | A2FM10/61WVPB030 | A2FM10/61WVPB030J |
| A2FM10/61WPAB040 | A2FM10/61WPAB040J | A2FM10/61WPZB040 | A2FM10/61WPZB040J |
| A2FM10/61WPBB040 | A2FM10/61WPBB040J | A2FM10/61WPPB040 | A2FM10/61WPPB040J |
| A2FM10/61WVAB040 | A2FM10/61WVAB040J | A2FM10/61WVZB040 | A2FM10/61WVZB040J |
| A2FM10/61WVBB040 | A2FM10/61WVB040J | A2FM10/61WVPB040 | A2FM10/61WVPB040J |
| A2FM12/61WPAB030 | A2FM12/61WPAB030J | A2FM12/61WPZB030 | A2FM12/61WPZB030J |
| A2FM12/61WPBB030 | A2FM12/61WPBB030J | A2FM12/61WPPB030 | A2FM12/61WPPB030J |
| A2FM12/61WVAB030 | A2FM12/61WVAB030J | A2FM12/61WVZB030 | A2FM12/61WVZB030J |
| A2FM12/61WVBB030 | A2FM12/61WVB030J | A2FM12/61WVPB030 | A2FM12/61WVPB030J |
| A2FM12/61WPAB040 | A2FM12/61WPAB040J | A2FM12/61WPZB040 | A2FM12/61WPZB040J |
| A2FM12/61WPBB040 | A2FM12/61WPBB040J | A2FM12/61WPPB040 | A2FM12/61WPPB040J |
| A2FM12/61WVAB040 | A2FM12/61WVAB040J | A2FM12/61WVZB040 | A2FM12/61WVZB040J |
| A2FM12/61WVBB040 | A2FM12/61WVB040J | A2FM12/61WVPB040 | A2FM12/61WVPB040J |
| A2FM16/61WPAB030 | A2FM16/61WPAB030J | A2FM16/61WPZB030 | A2FM16/61WPZB030J |
| A2FM16/61WPBB030 | A2FM16/61WPBB030J | A2FM16/61WPPB030 | A2FM16/61WPPB030J |
| A2FM16/61WVAB030 | A2FM16/61WVAB030J | A2FM16/61WVZB030 | A2FM16/61WVZB030J |
| A2FM16/61WVBB030 | A2FM16/61WVB030J | A2FM16/61WVPB030 | A2FM16/61WVPB030J |
| A2FM16/61WPAB040 | A2FM16/61WPAB040J | A2FM16/61WPZB040 | A2FM16/61WPZB040J |
| A2FM16/61WPBB040 | A2FM16/61WPBB040J | A2FM16/61WPPB040 | A2FM16/61WPPB040J |
| A2FM16/61WVAB040 | A2FM16/61WVAB040J | A2FM16/61WVZB040 | A2FM16/61WVZB040J |
| A2FM16/61WVBB040 | A2FM16/61WVB040J | A2FM16/61WVPB040 | A2FM16/61WVPB040J |
| A2FM23/61WPAB030 | A2FM23/61WPAB030J | A2FM23/61WPZB030 | A2FM23/61WPZB030J |
| A2FM23/61WPBB030 | A2FM23/61WPBB030J | A2FM23/61WPPB030 | A2FM23/61WPPB030J |
| A2FM23/61WVAB030 | A2FM23/61WVAB030J | A2FM23/61WVZB030 | A2FM23/61WVZB030J |
| A2FM23/61WVBB030 | A2FM23/61WVBB030J | A2FM23/61WVPB030 | A2FM23/61WVPB030J |
| A2FM23/61WPAB040 | A2FM23/61WPAB040J | A2FM23/61WPZB040 | A2FM23/61WPZB040J |
| A2FM23/61WPBB040 | A2FM23/61WPBB040J | A2FM23/61WPPB040 | A2FM23/61WPPB040J |
| A2FM23/61WVAB040 | A2FM23/61WVAB040J | A2FM23/61WVZB040 | A2FM23/61WVZB040J |
| A2FM23/61WVBB040 | A2FM23/61WVB040J | A2FM23/61WVPB040 | A2FM23/61WVPB040J |
| A2FM23/61WPAB010 | A2FM23/61WPAB010J | A2FM23/61WPZB010 | A2FM23/61WPZB010J |
| A2FM23/61WPBB010 | A2FM23/61WPBB010J | A2FM23/61WPPB010 | A2FM23/61WPPB010J |
| A2FM23/61WVAB010 | A2FM23/61WVAB010J | A2FM23/61WVZB010 | A2FM23/61WVZB010J |
| A2FM23/61WVBB010 | A2FM23/61WVB010J | A2FM23/61WVPB010 | A2FM23/61WVPB010J |
| A2FM23/61WPAB020 | A2FM23/61WPAB020J | A2FM23/61WPZB020 | A2FM23/61WPZB020J |
| A2FM23/61WPBB020 | A2FM23/61WPBB020J | A2FM23/61WPPB020 | A2FM23/61WPPB020J |
| A2FM23/61WVAB020 | A2FM23/61WVAB020J | A2FM23/61WVZB020 | A2FM23/61WVZB020J |
| A2FM23/61WVBB020 | A2FM23/61WVB020J | A2FM23/61WVPB020 | A2FM23/61WVPB020J |
| A2FM28/61WPAB030 | A2FM28/61WPAB030J | A2FM28/61WPZB030 | A2FM28/61WPZB030J |
| A2FM28/61WPBB030 | A2FM28/61WPBB030J | A2FM28/61WPPB030 | A2FM28/61WPPB030J |
| A2FM28/61WVAB030 | A2FM28/61WVAB030J | A2FM28/61WVZB030 | A2FM28/61WVZB030J |
| A2FM28/61WVBB030 | A2FM28/61WVBB030J | A2FM28/61WVPB030 | A2FM28/61WVPB030J |
| A2FM28/61WPAB040 | A2FM28/61WPAB040J | A2FM28/61WPZB040 | A2FM28/61WPZB040J |
| A2FM28/61WPBB040 | A2FM28/61WPBB040J | A2FM28/61WPPB040 | A2FM28/61WPPB040J |
| A2FM28/61WVAB040 | A2FM28/61WVAB040J | A2FM28/61WVZB040 | A2FM28/61WVZB040J |
| A2FM28/61WVBB040 | A2FM28/61WVB040J | A2FM28/61WVPB040 | A2FM28/61WVPB040J |
| A2FM28/61WPAB010 | A2FM28/61WPAB010J | A2FM28/61WPZB010 | A2FM28/61WPZB010J |
| A2FM28/61WPBB010 | A2FM28/61WPBB010J | A2FM28/61WPPB010 | A2FM28/61WPPB010J |
| A2FM28/61WVAB010 | A2FM28/61WVAB010J | A2FM28/61WVZB010 | A2FM28/61WVZB010J |
| A2FM28/61WVBB010 | A2FM28/61WVB010J | A2FM28/61WVPB010 | A2FM28/61WVPB010J |
| A2FM28/61WPAB020 | A2FM28/61WPAB020J | A2FM28/61WPZB020 | A2FM28/61WPZB020J |
| A2FM28/61WPBB020 | A2FM28/61WPBB020J | A2FM28/61WPPB020 | A2FM28/61WPPB020J |
| A2FM28/61WVAB020 | A2FM28/61WVAB020J | A2FM28/61WVZB020 | A2FM28/61WVZB020J |
| A2FM28/61WVBB020 | A2FM28/61WVB020J | A2FM28/61WVPB020 | A2FM28/61WVPB020J |
| A2FM28/61WPAB100 | A2FM28/61WPAB100J | A2FM28/61WPZB100 | A2FM28/61WPZB100J |
| A2FM28/61WPBB100 | A2FM28/61WPBB100J | A2FM28/61WPPB100 | A2FM28/61WPPB100J |
| A2FM28/61WVAB100 | A2FM28/61WVAB100J | A2FM28/61WVZB100 | A2FM28/61WVZB100J |
| A2FM28/61WVBB100 | A2FM28/61WVBB100J | A2FM28/61WVPB100 | A2FM28/61WVPB100J |
| A2FM28/61WPAB181 | A2FM28/61WPAB181J | A2FM28/61WPZB181 | A2FM28/61WPZB181J |
| A2FM28/61WPBB181 | A2FM28/61WPBB181J | A2FM28/61WPPB181 | A2FM28/61WPPB181J |
| A2FM28/61WVAB181 | A2FM28/61WVAB181J | A2FM28/61WVZB181 | A2FM28/61WVZB181J |
| A2FM28/61WVBB181 | A2FM28/61WVBB181J | A2FM28/61WVPB181 | A2FM28/61WVPB181J |
| A2FM28/61WPAB191 | A2FM28/61WPAB191J | A2FM28/61WPZB191 | A2FM28/61WPZB191J |
| A2FM28/61WPBB191 | A2FM28/61WPBB191J | A2FM28/61WPPB191 | A2FM28/61WPPB191J |
| A2FM28/61WVAB191 | A2FM28/61WVAB191J | A2FM28/61WVZB191 | A2FM28/61WVZB191J |
| A2FM28/61WVBB191 | A2FM28/61WVBB191J | A2FM28/61WVPB191 | A2FM28/61WVPB191J |
| A2FM28/61WPAB192 | A2FM28/61WPAB192J | A2FM28/61WPZB192 | A2FM28/61WPZB192J |
| A2FM28/61WPBB192 | A2FM28/61WPBB192J | A2FM28/61WPPB192 | A2FM28/61WPPB192J |
| A2FM28/61WVAB192 | A2FM28/61WVAB192J | A2FM28/61WVZB192 | A2FM28/61WVZB192J |
| A2FM28/61WVBB192 | A2FM28/61WVBB192J | A2FM28/61WVPB192 | A2FM28/61WVPB192J |
| A2FM32/61WPAB030 | A2FM32/61WPAB030J | A2FM32/61WPZB030 | A2FM32/61WPZB030J |
| A2FM32/61WPBB030 | A2FM32/61WPBB030J | A2FM32/61WPPB030 | A2FM32/61WPPB030J |
| A2FM32/61WVAB030 | A2FM32/61WVAB030J | A2FM32/61WVZB030 | A2FM32/61WVZB030J |
| A2FM32/61WVBB030 | A2FM32/61WVBB030J | A2FM32/61WVPB030 | A2FM32/61WVPB030J |
| A2FM32/61WPAB040 | A2FM32/61WPAB040J | A2FM32/61WPZB040 | A2FM32/61WPZB040J |
| A2FM32/61WPBB040 | A2FM32/61WPBB040J | A2FM32/61WPPB040 | A2FM32/61WPPB040J |
| A2FM32/61WVAB040 | A2FM32/61WVAB040J | A2FM32/61WVZB040 | A2FM32/61WVZB040J |
| A2FM32/61WVBB040 | A2FM32/61WVB040J | A2FM32/61WVPB040 | A2FM32/61WVPB040J |
| A2FM32/61WPAB010 | A2FM32/61WPAB010J | A2FM32/61WPZB010 | A2FM32/61WPZB010J |
| A2FM32/61WPBB010 | A2FM32/61WPBB010J | A2FM32/61WPPB010 | A2FM32/61WPPB010J |
| A2FM32/61WVAB010 | A2FM32/61WVAB010J | A2FM32/61WVZB010 | A2FM32/61WVZB010J |
| A2FM32/61WVBB010 | A2FM32/61WVB010J | A2FM32/61WVPB010 | A2FM32/61WVPB010J |
| A2FM32/61WPAB020 | A2FM32/61WPAB020J | A2FM32/61WPZB020 | A2FM32/61WPZB020J |
| A2FM32/61WPBB020 | A2FM32/61WPBB020J | A2FM32/61WPPB020 | A2FM32/61WPPB020J |
| A2FM32/61WVAB020 | A2FM32/61WVAB020J | A2FM32/61WVZB020 | A2FM32/61WVZB020J |
| A2FM32/61WVBB020 | A2FM32/61WVB020J | A2FM32/61WVPB020 | A2FM32/61WVPB020J |
| A2FM32/61WPAB100 | A2FM32/61WPAB100J | A2FM32/61WPZB100 | A2FM32/61WPZB100J |
| A2FM32/61WPBB100 | A2FM32/61WPBB100J | A2FM32/61WPPB100 | A2FM32/61WPPB100J |
| A2FM32/61WVAB100 | A2FM32/61WVAB100J | A2FM32/61WVZB100 | A2FM32/61WVZB100J |
| A2FM32/61WVBB100 | A2FM32/61WVBB100J | A2FM32/61WVPB100 | A2FM32/61WVPB100J |
| A2FM32/61WPAB181 | A2FM32/61WPAB181J | A2FM32/61WPZB181 | A2FM32/61WPZB181J |
| A2FM32/61WPBB181 | A2FM32/61WPBB181J | A2FM32/61WPPB181 | A2FM32/61WPPB181J |
| A2FM32/61WVAB181 | A2FM32/61WVAB181J | A2FM32/61WVZB181 | A2FM32/61WVZB181J |
| A2FM32/61WVBB181 | A2FM32/61WVB181J | A2FM32/61WVPB181 | A2FM32/61WVPB181J |
| A2FM32/61WPAB191 | A2FM32/61WPAB191J | A2FM32/61WPZB191 | A2FM32/61WPZB191J |
| A2FM32/61WPBB191 | A2FM32/61WPBB191J | A2FM32/61WPPB191 | A2FM32/61WPPB191J |
| A2FM32/61WVAB191 | A2FM32/61WVAB191J | A2FM32/61WVZB191 | A2FM32/61WVZB191J |
| A2FM32/61WVBB191 | A2FM32/61WVBB191J | A2FM32/61WVPB191 | A2FM32/61WVPB191J |
| A2FM32/61WPAB192 | A2FM32/61WPAB192J | A2FM32/61WPZB192 | A2FM32/61WPZB192J |
| A2FM32/61WPBB192 | A2FM32/61WPBB192J | A2FM32/61WPPB192 | A2FM32/61WPPB192J |
| A2FM32/61WVAB192 | A2FM32/61WVAB192J | A2FM32/61WVZB192 | A2FM32/61WVZB192J |
| A2FM32/61WVBB192 | A2FM32/61WVBB192J | A2FM32/61WVPB192 | A2FM32/61WVPB192J |
| A2FM45/61WPAB027 | A2FM45/61WPAB027J | A2FM45/61WPZB027 | A2FM45/61WPZB027J |
| A2FM45/61WPBB027 | A2FM45/61WPBB027J | A2FM45/61WPPB027 | A2FM45/61WPPB027J |
| A2FM45/61WVAB027 | A2FM45/61WVAB027J | A2FM45/61WVZB027 | A2FM45/61WVZB027J |
| A2FM45/61WVBB027 | A2FM45/61WVB027J | A2FM45/61WVPB027 | A2FM45/61WVPB027J |
| A2FM45/61WPAB040 | A2FM45/61WPAB040J | A2FM45/61WPZB040 | A2FM45/61WPZB040J |
| A2FM45/61WPBB040 | A2FM45/61WPBB040J | A2FM45/61WPPB040 | A2FM45/61WPPB040J |
| A2FM45/61WVAB040 | A2FM45/61WVAB040J | A2FM45/61WVZB040 | A2FM45/61WVZB040J |
| A2FM45/61WVBB040 | A2FM45/61WVB040J | A2FM45/61WVPB040 | A2FM45/61WVPB040J |
| A2FM45/61WPAB010 | A2FM45/61WPAB010J | A2FM45/61WPZB010 | A2FM45/61WPZB010J |
| A2FM45/61WPBB010 | A2FM45/61WPBB010J | A2FM45/61WPPB010 | A2FM45/61WPPB010J |
| A2FM45/61WVAB010 | A2FM45/61WVAB010J | A2FM45/61WVZB010 | A2FM45/61WVZB010J |
| A2FM45/61WVBB010 | A2FM45/61WVB010J | A2FM45/61WVPB010 | A2FM45/61WVPB010J |
| A2FM45/61WPAB020 | A2FM45/61WPAB020J | A2FM45/61WPZB020 | A2FM45/61WPZB020J |
| A2FM45/61WPBB020 | A2FM45/61WPBB020J | A2FM45/61WPPB020 | A2FM45/61WPPB020J |
| A2FM45/61WVAB020 | A2FM45/61WVAB020J | A2FM45/61WVZB020 | A2FM45/61WVZB020J |
| A2FM45/61WVBB020 | A2FM45/61WVB020J | A2FM45/61WVPB020 | A2FM45/61WVPB020J |
| A2FM45/61WPAB100 | A2FM45/61WPAB100J | A2FM45/61WPZB100 | A2FM45/61WPZB100J |
| A2FM45/61WPBB100 | A2FM45/61WPBB100J | A2FM45/61WPPB100 | A2FM45/61WPPB100J |
| A2FM45/61WVAB100 | A2FM45/61WVAB100J | A2FM45/61WVZB100 | A2FM45/61WVZB100J |
| A2FM45/61WVBB100 | A2FM45/61WVBB100J | A2FM45/61WVPB100 | A2FM45/61WVPB100J |
| A2FM45/61WPAB181 | A2FM45/61WPAB181J | A2FM45/61WPZB181 | A2FM45/61WPZB181J |
| A2FM45/61WPBB181 | A2FM45/61WPBB181J | A2FM45/61WPPB181 | A2FM45/61WPPB181J |
| A2FM45/61WVAB181 | A2FM45/61WVAB181J | A2FM45/61WVZB181 | A2FM45/61WVZB181J |
| A2FM45/61WVBB181 | A2FM45/61WVB181J | A2FM45/61WVPB181 | A2FM45/61WVPB181J |
| A2FM45/61WPAB191 | A2FM45/61WPAB191J | A2FM45/61WPZB191 | A2FM45/61WPZB191J |
| A2FM45/61WPBB191 | A2FM45/61WPBB191J | A2FM45/61WPPB191 | A2FM45/61WPPB191J |
| A2FM45/61WVAB191 | A2FM45/61WVAB191J | A2FM45/61WVZB191 | A2FM45/61WVZB191J |
| A2FM45/61WVBB191 | A2FM45/61WVB191J | A2FM45/61WVPB191 | A2FM45/61WVPB191J |
| A2FM45/61WPAB192 | A2FM45/61WPAB192J | A2FM45/61WPZB192 | A2FM45/61WPZB192J |
| A2FM45/61WPBB192 | A2FM45/61WPBB192J | A2FM45/61WPPB192 | A2FM45/61WPPB192J |
| A2FM45/61WVAB192 | A2FM45/61WVAB192J | A2FM45/61WVZB192 | A2FM45/61WVZB192J |
| A2FM45/61WVBB192 | A2FM45/61WVBB192J | A2FM45/61WVPB192 | A2FM45/61WVPB192J |
| A2FM56/61WPAB029 | A2FM56/61WPAB029J | A2FM56/61WPZB029 | A2FM56/61WPZB029J |
| A2FM56/61WPBB029 | A2FM56/61WPBB029J | A2FM56/61WPPB029 | A2FM56/61WPPB029J |
| A2FM56/61WVAB029 | A2FM56/61WVAB029J | A2FM56/61WVZB029 | A2FM56/61WVZB029J |
| A2FM56/61WVBB029 | A2FM56/61WVB029J | A2FM56/61WVPB029 | A2FM56/61WVPB029J |
| A2FM56/61WPAB040 | A2FM56/61WPAB040J | A2FM56/61WPZB040 | A2FM56/61WPZB040J |
| A2FM56/61WPBB040 | A2FM56/61WPBB040J | A2FM56/61WPPB040 | A2FM56/61WPPB040J |
| A2FM56/61WVAB040 | A2FM56/61WVAB040J | A2FM56/61WVZB040 | A2FM56/61WVZB040J |
| A2FM56/61WVBB040 | A2FM56/61WVB040J | A2FM56/61WVPB040 | A2FM56/61WVPB040J |
| A2FM56/61WPAB010 | A2FM56/61WPAB010J | A2FM56/61WPZB010 | A2FM56/61WPZB010J |
| A2FM56/61WPBB010 | A2FM56/61WPBB010J | A2FM56/61WPPB010 | A2FM56/61WPPB010J |
| A2FM56/61WVAB010 | A2FM56/61WVAB010J | A2FM56/61WVZB010 | A2FM56/61WVZB010J |
| A2FM56/61WVBB010 | A2FM56/61WVB010J | A2FM56/61WVPB010 | A2FM56/61WVPB010J |
| A2FM56/61WPAB020 | A2FM56/61WPAB020J | A2FM56/61WPZB020 | A2FM56/61WPZB020J |
| A2FM56/61WPBB020 | A2FM56/61WPBB020J | A2FM56/61WPPB020 | A2FM56/61WPPB020J |
| A2FM56/61WVAB020 | A2FM56/61WVAB020J | A2FM56/61WVZB020 | A2FM56/61WVZB020J |
| A2FM56/61WVBB020 | A2FM56/61WVB020J | A2FM56/61WVPB020 | A2FM56/61WVPB020J |
| A2FM56/61WPAB100 | A2FM56/61WPAB100J | A2FM56/61WPZB100 | A2FM56/61WPZB100J |
| A2FM56/61WPBB100 | A2FM56/61WPBB100J | A2FM56/61WPPB100 | A2FM56/61WPPB100J |
| A2FM56/61WVAB100 | A2FM56/61WVAB100J | A2FM56/61WVZB100 | A2FM56/61WVZB100J |
| A2FM56/61WVBB100 | A2FM56/61WVBB100J | A2FM56/61WVPB100 | A2FM56/61WVPB100J |
| A2FM56/61WPAB181 | A2FM56/61WPAB181J | A2FM56/61WPZB181 | A2FM56/61WPZB181J |
| A2FM56/61WPBB181 | A2FM56/61WPBB181J | A2FM56/61WPPB181 | A2FM56/61WPPB181J |
| A2FM56/61WVAB181 | A2FM56/61WVAB181J | A2FM56/61WVZB181 | A2FM56/61WVZB181J |
| A2FM56/61WVBB181 | A2FM56/61WVB181J | A2FM56/61WVPB181 | A2FM56/61WVPB181J |
| A2FM56/61WPAB191 | A2FM56/61WPAB191J | A2FM56/61WPZB191 | A2FM56/61WPZB191J |
| A2FM56/61WPBB191 | A2FM56/61WPBB191J | A2FM56/61WPPB191 | A2FM56/61WPPB191J |
| A2FM56/61WVAB191 | A2FM56/61WVAB191J | A2FM56/61WVZB191 | A2FM56/61WVZB191J |
| A2FM56/61WVBB191 | A2FM56/61WVB191J | A2FM56/61WVPB191 | A2FM56/61WVPB191J |
| A2FM56/61WPAB192 | A2FM56/61WPAB192J | A2FM56/61WPZB192 | A2FM56/61WPZB192J |
| A2FM56/61WPBB192 | A2FM56/61WPBB192J | A2FM56/61WPPB192 | A2FM56/61WPPB192J |
| A2FM56/61WVAB192 | A2FM56/61WVAB192J | A2FM56/61WVZB192 | A2FM56/61WVZB192J |
| A2FM56/61WVBB192 | A2FM56/61WVBB192J | A2FM56/61WVPB192 | A2FM56/61WVPB192J |
| A2FM63/61WPAB029 | A2FM63/61WPAB029J | A2FM63/61WPZB029 | A2FM63/61WPZB029J |
| A2FM63/61WPBB029 | A2FM63/61WPBB029J | A2FM63/61WPPB029 | A2FM63/61WPPB029J |
| A2FM63/61WVAB029 | A2FM63/61WVAB029J | A2FM63/61WVZB029 | A2FM63/61WVZB029J |
| A2FM63/61WVBB029 | A2FM63/61WVB029J | A2FM63/61WVPB029 | A2FM63/61WVPB029J |
| A2FM63/61WPAB040 | A2FM63/61WPAB040J | A2FM63/61WPZB040 | A2FM63/61WPZB040J |
| A2FM63/61WPBB040 | A2FM63/61WPBB040J | A2FM63/61WPPB040 | A2FM63/61WPPB040J |
| A2FM63/61WVAB040 | A2FM63/61WVAB040J | A2FM63/61WVZB040 | A2FM63/61WVZB040J |
| A2FM63/61WVBB040 | A2FM63/61WVB040J | A2FM63/61WVPB040 | A2FM63/61WVPB040J |
| A2FM63/61WPAB010 | A2FM63/61WPAB010J | A2FM63/61WPZB010 | A2FM63/61WPZB010J |
| A2FM63/61WPBB010 | A2FM63/61WPBB010J | A2FM63/61WPPB010 | A2FM63/61WPPB010J |
| A2FM63/61WVAB010 | A2FM63/61WVAB010J | A2FM63/61WVZB010 | A2FM63/61WVZB010J |
| A2FM63/61WVBB010 | A2FM63/61WVB010J | A2FM63/61WVPB010 | A2FM63/61WVPB010J |
| A2FM63/61WPAB020 | A2FM63/61WPAB020J | A2FM63/61WPZB020 | A2FM63/61WPZB020J |
| A2FM63/61WPBB020 | A2FM63/61WPBB020J | A2FM63/61WPPB020 | A2FM63/61WPPB020J |
| A2FM63/61WVAB020 | A2FM63/61WVAB020J | A2FM63/61WVZB020 | A2FM63/61WVZB020J |
| A2FM63/61WVBB020 | A2FM63/61WVB020J | A2FM63/61WVPB020 | A2FM63/61WVPB020J |
| A2FM63/61WPAB100 | A2FM63/61WPAB100J | A2FM63/61WPZB100 | A2FM63/61WPZB100J |
| A2FM63/61WPBB100 | A2FM63/61WPBB100J | A2FM63/61WPPB100 | A2FM63/61WPPB100J |
| A2FM63/61WVAB100 | A2FM63/61WVAB100J | A2FM63/61WVZB100 | A2FM63/61WVZB100J |
| A2FM63/61WVBB100 | A2FM63/61WVBB100J | A2FM63/61WVPB100 | A2FM63/61WVPB100J |
| A2FM63/61WPAB181 | A2FM63/61WPAB181J | A2FM63/61WPZB181 | A2FM63/61WPZB181J |
| A2FM63/61WPBB181 | A2FM63/61WPBB181J | A2FM63/61WPPB181 | A2FM63/61WPPB181J |
| A2FM63/61WVAB181 | A2FM63/61WVAB181J | A2FM63/61WVZB181 | A2FM63/61WVZB181J |
| A2FM63/61WVBB181 | A2FM63/61WVB181J | A2FM63/61WVPB181 | A2FM63/61WVPB181J |
| A2FM63/61WPAB191 | A2FM63/61WPAB191J | A2FM63/61WPZB191 | A2FM63/61WPZB191J |
| A2FM63/61WPBB191 | A2FM63/61WPBB191J | A2FM63/61WPPB191 | A2FM63/61WPPB191J |
| A2FM63/61WVAB191 | A2FM63/61WVAB191J | A2FM63/61WVZB191 | A2FM63/61WVZB191J |
| A2FM63/61WVBB191 | A2FM63/61WVB191J | A2FM63/61WVPB191 | A2FM63/61WVPB191J |
| A2FM63/61WPAB192 | A2FM63/61WPAB192J | A2FM63/61WPZB192 | A2FM63/61WPZB192J |
| A2FM63/61WPBB192 | A2FM63/61WPBB192J | A2FM63/61WPPB192 | A2FM63/61WPPB192J |
| A2FM63/61WVAB192 | A2FM63/61WVAB192J | A2FM63/61WVZB192 | A2FM63/61WVZB192J |
| A2FM63/61WVBB192 | A2FM63/61WVB192J | A2FM63/61WVPB192 | A2FM63/61WVPB192J |
| A2FM80/61WPAB029 | A2FM80/61WPAB029J | A2FM80/61WPZB029 | A2FM80/61WPZB029J |
| A2FM80/61WPBB029 | A2FM80/61WPBB029J | A2FM80/61WPPB029 | A2FM80/61WPPB029J |
| A2FM80/61WVAB029 | A2FM80/61WVAB029J | A2FM80/61WVZB029 | A2FM80/61WVZB029J |
| A2FM80/61WVBB029 | A2FM80/61WVB029J | A2FM80/61WVPB029 | A2FM80/61WVPB029J |
| A2FM80/61WPAB010 | A2FM80/61WPAB010J | A2FM80/61WPZB010 | A2FM80/61WPZB010J |
| A2FM80/61WPBB010 | A2FM80/61WPBB010J | A2FM80/61WPPB010 | A2FM80/61WPPB010J |
| A2FM80/61WVAB010 | A2FM80/61WVAB010J | A2FM80/61WVZB010 | A2FM80/61WVZB010J |
| A2FM80/61WVBB010 | A2FM80/61WVB010J | A2FM80/61WVPB010 | A2FM80/61WVPB010J |
| A2FM80/61WPAB020 | A2FM80/61WPAB020J | A2FM80/61WPZB020 | A2FM80/61WPZB020J |
| A2FM80/61WPBB020 | A2FM80/61WPBB020J | A2FM80/61WPPB020 | A2FM80/61WPPB020J |
| A2FM80/61WVAB020 | A2FM80/61WVAB020J | A2FM80/61WVZB020 | A2FM80/61WVZB020J |
| A2FM80/61WVBB020 | A2FM80/61WVB020J | A2FM80/61WVPB020 | A2FM80/61WVPB020J |
| A2FM80/61WPAB100 | A2FM80/61WPAB100J | A2FM80/61WPZB100 | A2FM80/61WPZB100J |
| A2FM80/61WPBB100 | A2FM80/61WPBB100J | A2FM80/61WPPB100 | A2FM80/61WPPB100J |
| A2FM80/61WVAB100 | A2FM80/61WVAB100J | A2FM80/61WVZB100 | A2FM80/61WVZB100J |
| A2FM80/61WVBB100 | A2FM80/61WVBB100J | A2FM80/61WVPB100 | A2FM80/61WVPB100J |
| A2FM80/61WPAB181 | A2FM80/61WPAB181J | A2FM80/61WPZB181 | A2FM80/61WPZB181J |
| A2FM80/61WPBB181 | A2FM80/61WPBB181J | A2FM80/61WPPB181 | A2FM80/61WPPB181J |
| A2FM80/61WVAB181 | A2FM80/61WVAB181J | A2FM80/61WVZB181 | A2FM80/61WVZB181J |
| A2FM80/61WVBB181 | A2FM80/61WVB181J | A2FM80/61WVPB181 | A2FM80/61WVPB181J |
| A2FM80/61WPAB191 | A2FM80/61WPAB191J | A2FM80/61WPZB191 | A2FM80/61WPZB191J |
| A2FM80/61WPBB191 | A2FM80/61WPBB191J | A2FM80/61WPPB191 | A2FM80/61WPPB191J |
| A2FM80/61WVAB191 | A2FM80/61WVAB191J | A2FM80/61WVZB191 | A2FM80/61WVZB191J |
| A2FM80/61WVBB191 | A2FM80/61WVB191J | A2FM80/61WVPB191 | A2FM80/61WVPB191J |
| A2FM80/61WPAB192 | A2FM80/61WPAB192J | A2FM80/61WPZB192 | A2FM80/61WPZB192J |
| A2FM80/61WPBB192 | A2FM80/61WPBB192J | A2FM80/61WPPB192 | A2FM80/61WPPB192J |
| A2FM80/61WVAB192 | A2FM80/61WVAB192J | A2FM80/61WVZB192 | A2FM80/61WVZB192J |
| A2FM80/61WVBB192 | A2FM80/61WVBB192J | A2FM80/61WVPB192 | A2FM80/61WVPB192J |
| A2FM90/61WPAB029 | A2FM90/61WPAB029J | A2FM90/61WPZB029 | A2FM90/61WPZB029J |
| A2FM90/61WPBB029 | A2FM90/61WPBB029J | A2FM90/61WPPB029 | A2FM90/61WPPB029J |
| A2FM90/61WVAB029 | A2FM90/61WVAB029J | A2FM90/61WVZB029 | A2FM90/61WVZB029J |
| A2FM90/61WVBB029 | A2FM90/61WVB029J | A2FM90/61WVPB029 | A2FM90/61WVPB029J |
| A2FM90/61WPAB010 | A2FM90/61WPAB010J | A2FM90/61WPZB010 | A2FM90/61WPZB010J |
| A2FM90/61WPBB010 | A2FM90/61WPBB010J | A2FM90/61WPPB010 | A2FM90/61WPPB010J |
| A2FM90/61WVAB010 | A2FM90/61WVAB010J | A2FM90/61WVZB010 | A2FM90/61WVZB010J |
| A2FM90/61WVBB010 | A2FM90/61WVB010J | A2FM90/61WVPB010 | A2FM90/61WVPB010J |
| A2FM90/61WPAB020 | A2FM90/61WPAB020J | A2FM90/61WPZB020 | A2FM90/61WPZB020J |
| A2FM90/61WPBB020 | A2FM90/61WPBB020J | A2FM90/61WPPB020 | A2FM90/61WPPB020J |
| A2FM90/61WVAB020 | A2FM90/61WVAB020J | A2FM90/61WVZB020 | A2FM90/61WVZB020J |
| A2FM90/61WVBB020 | A2FM90/61WVB020J | A2FM90/61WVPB020 | A2FM90/61WVPB020J |
| A2FM90/61WPAB100 | A2FM90/61WPAB100J | A2FM90/61WPZB100 | A2FM90/61WPZB100J |
| A2FM90/61WPBB100 | A2FM90/61WPBB100J | A2FM90/61WPPB100 | A2FM90/61WPPB100J |
| A2FM90/61WVAB100 | A2FM90/61WVAB100J | A2FM90/61WVZB100 | A2FM90/61WVZB100J |
| A2FM90/61WVBB100 | A2FM90/61WVBB100J | A2FM90/61WVPB100 | A2FM90/61WVPB100J |
| A2FM90/61WPAB181 | A2FM90/61WPAB181J | A2FM90/61WPZB181 | A2FM90/61WPZB181J |
| A2FM90/61WPBB181 | A2FM90/61WPBB181J | A2FM90/61WPPB181 | A2FM90/61WPPB181J |
| A2FM90/61WVAB181 | A2FM90/61WVAB181J | A2FM90/61WVZB181 | A2FM90/61WVZB181J |
| A2FM90/61WVBB181 | A2FM90/61WVB181J | A2FM90/61WVPB181 | A2FM90/61WVPB181J |
| A2FM90/61WPAB191 | A2FM90/61WPAB191J | A2FM90/61WPZB191 | A2FM90/61WPZB191J |
| A2FM90/61WPBB191 | A2FM90/61WPBB191J | A2FM90/61WPPB191 | A2FM90/61WPPB191J |
| A2FM90/61WVAB191 | A2FM90/61WVAB191J | A2FM90/61WVZB191 | A2FM90/61WVZB191J |
| A2FM90/61WVBB191 | A2FM90/61WVB191J | A2FM90/61WVPB191 | A2FM90/61WVPB191J |
| A2FM90/61WPAB192 | A2FM90/61WPAB192J | A2FM90/61WPZB192 | A2FM90/61WPZB192J |
| A2FM90/61WPBB192 | A2FM90/61WPBB192J | A2FM90/61WPPB192 | A2FM90/61WPPB192J |
| A2FM90/61WVAB192 | A2FM90/61WVAB192J | A2FM90/61WVZB192 | A2FM90/61WVZB192J |
| A2FM90/61WVBB192 | A2FM90/61WVB192J | A2FM90/61WVPB192 | A2FM90/61WVPB192J |
| A2FM107/61WPAB191 | A2FM107/61WPAB191J | A2FM107/61WPZB191 | A2FM107/61WPZB191J |
| A2FM107/61WPBB191 | A2FM107/61WPBB191J | A2FM107/61WPPB191 | A2FM107/61WPPB191J |
| A2FM107/61WVAB191 | A2FM107/61WVAB191J | A2FM107/61WVZB191 | A2FM107/61WVZB191J |
| A2FM107/61WVBB191 | A2FM107/61WVBB191J | A2FM107/61WVPB191 | A2FM107/61WVPB191J |
| A2FM107/61WPAB192 | A2FM107/61WPAB192J | A2FM107/61WPZB192 | A2FM107/61WPZB192J |
| A2FM107/61WPBB192 | A2FM107/61WPBB192J | A2FM107/61WPPB192 | A2FM107/61WPPB192J |
| A2FM107/61WVAB192 | A2FM107/61WVAB192J | A2FM107/61WVZB192 | A2FM107/61WVZB192J |
| A2FM107/61WVBB192 | A2FM107/61WVBB192J | A2FM107/61WVPB192 | A2FM107/61WVPB192J |
| A2FM107/61WPAB171 | A2FM107/61WPAB171J | A2FM107/61WPZB171 | A2FM107/61WPZB171J |
| A2FM107/61WPBB171 | A2FM107/61WPBB171J | A2FM107/61WPPB171 | A2FM107/61WPPB171J |
| A2FM107/61WVAB171 | A2FM107/61WVAB171J | A2FM107/61WVZB171 | A2FM107/61WVZB171J |
| A2FM107/61WVBB171 | A2FM107/61WVB171J | A2FM107/61WVPB171 | A2FM107/61WVPB171J |
| A2FM107/61WPAB178 | A2FM107/61WPAB178J | A2FM107/61WPZB178 | A2FM107/61WPZB178J |
| A2FM107/61WPBB178 | A2FM107/61WPBB178J | A2FM107/61WPPB178 | A2FM107/61WPPB178J |
| A2FM107/61WVAB178 | A2FM107/61WVAB178J | A2FM107/61WVZB178 | A2FM107/61WVZB178J |
| A2FM107/61WVBB178 | A2FM107/61WVB178J | A2FM107/61WVPB178 | A2FM107/61WVPB178J |
| A2FM107/61WPAB188 | A2FM107/61WPAB188J | A2FM107/61WPZB188 | A2FM107/61WPZB188J |
| A2FM107/61WPBB188 | A2FM107/61WPBB188J | A2FM107/61WPPB188 | A2FM107/61WPPB188J |
| A2FM107/61WVAB188 | A2FM107/61WVAB188J | A2FM107/61WVZB188 | A2FM107/61WVZB188J |
| A2FM107/61WVBB188 | A2FM107/61WVB188J | A2FM107/61WVPB188 | A2FM107/61WVPB188J |
| A2FM125/61WPAB027 | A2FM125/61WPAB027J | A2FM125/61WPZB027 | A2FM125/61WPZB027J |
| A2FM125/61WPBB027 | A2FM125/61WPBB027J | A2FM125/61WPPB027 | A2FM125/61WPPB027J |
| A2FM125/61WVAB027 | A2FM125/61WVAB027J | A2FM125/61WVZB027 | A2FM125/61WVZB027J |
| A2FM125/61WVBB027 | A2FM125/61WVB027J | A2FM125/61WVPB027 | A2FM125/61WVPB027J |
| A2FM125/61WPAB010 | A2FM125/61WPAB010J | A2FM125/61WPZB010 | A2FM125/61WPZB010J |
| A2FM125/61WPBB010 | A2FM125/61WPBB010J | A2FM125/61WPPB010 | A2FM125/61WPPB010J |
| A2FM125/61WVAB010 | A2FM125/61WVAB010J | A2FM125/61WVZB010 | A2FM125/61WVZB010J |
| A2FM125/61WVBB010 | A2FM125/61WVBB010J | A2FM125/61WVPB010 | A2FM125/61WVPB010J |
| A2FM125/61WPAB020 | A2FM125/61WPAB020J | A2FM125/61WPZB020 | A2FM125/61WPZB020J |
| A2FM125/61WPBB020 | A2FM125/61WPBB020J | A2FM125/61WPPB020 | A2FM125/61WPPB020J |
| A2FM125/61WVAB020 | A2FM125/61WVAB020J | A2FM125/61WVZB020 | A2FM125/61WVZB020J |
| A2FM125/61WVBB020 | A2FM125/61WVB020J | A2FM125/61WVPB020 | A2FM125/61WVPB020J |
| A2FM125/61WPAB100 | A2FM125/61WPAB100J | A2FM125/61WPZB100 | A2FM125/61WPZB100J |
| A2FM125/61WPBB100 | A2FM125/61WPBB100J | A2FM125/61WPPB100 | A2FM125/61WPPB100J |
| A2FM125/61WVAB100 | A2FM125/61WVAB100J | A2FM125/61WVZB100 | A2FM125/61WVZB100J |
| A2FM125/61WVBB100 | A2FM125/61WVBB100J | A2FM125/61WVPB100 | A2FM125/61WVPB100J |
| A2FM125/61WPAB181 | A2FM125/61WPAB181J | A2FM125/61WPZB181 | A2FM125/61WPZB181J |
| A2FM125/61WPBB181 | A2FM125/61WPBB181J | A2FM125/61WPPB181 | A2FM125/61WPPB181J |
| A2FM125/61WVAB181 | A2FM125/61WVAB181J | A2FM125/61WVZB181 | A2FM125/61WVZB181J |
| A2FM125/61WVBB181 | A2FM125/61WVBB181J | A2FM125/61WVPB181 | A2FM125/61WVPB181J |
| A2FM125/61WPAB191 | A2FM125/61WPAB191J | A2FM125/61WPZB191 | A2FM125/61WPZB191J |
| A2FM125/61WPBB191 | A2FM125/61WPBB191J | A2FM125/61WPPB191 | A2FM125/61WPPB191J |
| A2FM125/61WVAB191 | A2FM125/61WVAB191J | A2FM125/61WVZB191 | A2FM125/61WVZB191J |
| A2FM125/61WVBB191 | A2FM125/61WVBB191J | A2FM125/61WVPB191 | A2FM125/61WVPB191J |
| A2FM125/61WPAB192 | A2FM125/61WPAB192J | A2FM125/61WPZB192 | A2FM125/61WPZB192J |
| A2FM125/61WPBB192 | A2FM125/61WPBB192J | A2FM125/61WPPB192 | A2FM125/61WPPB192J |
| A2FM125/61WVAB192 | A2FM125/61WVAB192J | A2FM125/61WVZB192 | A2FM125/61WVZB192J |
| A2FM125/61WVBB192 | A2FM125/61WVBB192J | A2FM125/61WVPB192 | A2FM125/61WVPB192J |
| A2FM125/61WPAB171 | A2FM125/61WPAB171J | A2FM125/61WPZB171 | A2FM125/61WPZB171J |
| A2FM125/61WPBB171 | A2FM125/61WPBB171J | A2FM125/61WPPB171 | A2FM125/61WPPB171J |
| A2FM125/61WVAB171 | A2FM125/61WVAB171J | A2FM125/61WVZB171 | A2FM125/61WVZB171J |
| A2FM125/61WVBB171 | A2FM125/61WVB171J | A2FM125/61WVPB171 | A2FM125/61WVPB171J |
| A2FM125/61WPAB178 | A2FM125/61WPAB178J | A2FM125/61WPZB178 | A2FM125/61WPZB178J |
| A2FM125/61WPBB178 | A2FM125/61WPBB178J | A2FM125/61WPPB178 | A2FM125/61WPPB178J |
| A2FM125/61WVAB178 | A2FM125/61WVAB178J | A2FM125/61WVZB178 | A2FM125/61WVZB178J |
| A2FM125/61WVBB178 | A2FM125/61WVBB178J | A2FM125/61WVPB178 | A2FM125/61WVPB178J |
| A2FM125/61WPAB188 | A2FM125/61WPAB188J | A2FM125/61WPZB188 | A2FM125/61WPZB188J |
| A2FM125/61WPBB188 | A2FM125/61WPBB188J | A2FM125/61WPPB188 | A2FM125/61WPPB188J |
| A2FM125/61WVAB188 | A2FM125/61WVAB188J | A2FM125/61WVZB188 | A2FM125/61WVZB188J |
| A2FM125/61WVBB188 | A2FM125/61WVBB188J | A2FM125/61WVPB188 | A2FM125/61WVPB188J |
| A2FM160/61WPAB027 | A2FM160/61WPAB027J | A2FM160/61WPZB027 | A2FM160/61WPZB027J |
| A2FM160/61WPBB027 | A2FM160/61WPBB027J | A2FM160/61WPPB027 | A2FM160/61WPPB027J |
| A2FM160/61WVAB027 | A2FM160/61WVAB027J | A2FM160/61WVZB027 | A2FM160/61WVZB027J |
| A2FM160/61WVBB027 | A2FM160/61WVB027J | A2FM160/61WVPB027 | A2FM160/61WVPB027J |
| A2FM160/61WPAB010 | A2FM160/61WPAB010J | A2FM160/61WPZB010 | A2FM160/61WPZB010J |
| A2FM160/61WPBB010 | A2FM160/61WPBB010J | A2FM160/61WPPB010 | A2FM160/61WPPB010J |
| A2FM160/61WVAB010 | A2FM160/61WVAB010J | A2FM160/61WVZB010 | A2FM160/61WVZB010J |
| A2FM160/61WVBB010 | A2FM160/61WVBB010J | A2FM160/61WVPB010 | A2FM160/61WVPB010J |
| A2FM160/61WPAB020 | A2FM160/61WPAB020J | A2FM160/61WPZB020 | A2FM160/61WPZB020J |
| A2FM160/61WPBB020 | A2FM160/61WPBB020J | A2FM160/61WPPB020 | A2FM160/61WPPB020J |
| A2FM160/61WVAB020 | A2FM160/61WVAB020J | A2FM160/61WVZB020 | A2FM160/61WVZB020J |
| A2FM160/61WVBB020 | A2FM160/61WVB020J | A2FM160/61WVPB020 | A2FM160/61WVPB020J |
| A2FM160/61WPAB100 | A2FM160/61WPAB100J | A2FM160/61WPZB100 | A2FM160/61WPZB100J |
| A2FM160/61WPBB100 | A2FM160/61WPBB100J | A2FM160/61WPPB100 | A2FM160/61WPPB100J |
| A2FM160/61WVAB100 | A2FM160/61WVAB100J | A2FM160/61WVZB100 | A2FM160/61WVZB100J |
| A2FM160/61WVBB100 | A2FM160/61WVBB100J | A2FM160/61WVPB100 | A2FM160/61WVPB100J |
| A2FM160/61WPAB181 | A2FM160/61WPAB181J | A2FM160/61WPZB181 | A2FM160/61WPZB181J |
| A2FM160/61WPBB181 | A2FM160/61WPBB181J | A2FM160/61WPPB181 | A2FM160/61WPPB181J |
| A2FM160/61WVAB181 | A2FM160/61WVAB181J | A2FM160/61WVZB181 | A2FM160/61WVZB181J |
| A2FM160/61WVBB181 | A2FM160/61WVBB181J | A2FM160/61WVPB181 | A2FM160/61WVPB181J |
| A2FM160/61WPAB191 | A2FM160/61WPAB191J | A2FM160/61WPZB191 | A2FM160/61WPZB191J |
| A2FM160/61WPBB191 | A2FM160/61WPBB191J | A2FM160/61WPPB191 | A2FM160/61WPPB191J |
| A2FM160/61WVAB191 | A2FM160/61WVAB191J | A2FM160/61WVZB191 | A2FM160/61WVZB191J |
| A2FM160/61WVBB191 | A2FM160/61WVBB191J | A2FM160/61WVPB191 | A2FM160/61WVPB191J |
| A2FM160/61WPAB192 | A2FM160/61WPAB192J | A2FM160/61WPZB192 | A2FM160/61WPZB192J |
| A2FM160/61WPBB192 | A2FM160/61WPBB192J | A2FM160/61WPPB192 | A2FM160/61WPPB192J |
| A2FM160/61WVAB192 | A2FM160/61WVAB192J | A2FM160/61WVZB192 | A2FM160/61WVZB192J |
| A2FM160/61WVBB192 | A2FM160/61WVBB192J | A2FM160/61WVPB192 | A2FM160/61WVPB192J |
| A2FM160/61WPAB188 | A2FM160/61WPAB188J | A2FM160/61WPZB188 | A2FM160/61WPZB188J |
| A2FM160/61WPBB188 | A2FM160/61WPBB188J | A2FM160/61WPPB188 | A2FM160/61WPPB188J |
| A2FM160/61WVAB188 | A2FM160/61WVAB188J | A2FM160/61WVZB188 | A2FM160/61WVZB188J |
| A2FM160/61WVBB188 | A2FM160/61WVBB188J | A2FM160/61WVPB188 | A2FM160/61WVPB188J |
| A2FM180/61WPAB027 | A2FM180/61WPAB027J | A2FM180/61WPZB027 | A2FM180/61WPZB027J |
| A2FM180/61WPBB027 | A2FM180/61WPBB027J | A2FM180/61WPPB027 | A2FM180/61WPPB027J |
| A2FM180/61WVAB027 | A2FM180/61WVAB027J | A2FM180/61WVZB027 | A2FM180/61WVZB027J |
| A2FM180/61WVBB027 | A2FM180/61WVB027J | A2FM180/61WVPB027 | A2FM180/61WVPB027J |
| A2FM180/61WPAB010 | A2FM180/61WPAB010J | A2FM180/61WPZB010 | A2FM180/61WPZB010J |
| A2FM180/61WPBB010 | A2FM180/61WPBB010J | A2FM180/61WPPB010 | A2FM180/61WPPB010J |
| A2FM180/61WVAB010 | A2FM180/61WVAB010J | A2FM180/61WVZB010 | A2FM180/61WVZB010J |
| A2FM180/61WVBB010 | A2FM180/61WVBB010J | A2FM180/61WVPB010 | A2FM180/61WVPB010J |
| A2FM180/61WPAB020 | A2FM180/61WPAB020J | A2FM180/61WPZB020 | A2FM180/61WPZB020J |
| A2FM180/61WPBB020 | A2FM180/61WPBB020J | A2FM180/61WPPB020 | A2FM180/61WPPB020J |
| A2FM180/61WVAB020 | A2FM180/61WVAB020J | A2FM180/61WVZB020 | A2FM180/61WVZB020J |
| A2FM180/61WVBB020 | A2FM180/61WVB020J | A2FM180/61WVPB020 | A2FM180/61WVPB020J |
| A2FM180/61WPAB100 | A2FM180/61WPAB100J | A2FM180/61WPZB100 | A2FM180/61WPZB100J |
| A2FM180/61WPBB100 | A2FM180/61WPBB100J | A2FM180/61WPPB100 | A2FM180/61WPPB100J |
| A2FM180/61WVAB100 | A2FM180/61WVAB100J | A2FM180/61WVZB100 | A2FM180/61WVZB100J |
| A2FM180/61WVBB100 | A2FM180/61WVBB100J | A2FM180/61WVPB100 | A2FM180/61WVPB100J |
| A2FM180/61WPAB181 | A2FM180/61WPAB181J | A2FM180/61WPZB181 | A2FM180/61WPZB181J |
| A2FM180/61WPBB181 | A2FM180/61WPBB181J | A2FM180/61WPPB181 | A2FM180/61WPPB181J |
| A2FM180/61WVAB181 | A2FM180/61WVAB181J | A2FM180/61WVZB181 | A2FM180/61WVZB181J |
| A2FM180/61WVBB181 | A2FM180/61WVBB181J | A2FM180/61WVPB181 | A2FM180/61WVPB181J |
| A2FM180/61WPAB191 | A2FM180/61WPAB191J | A2FM180/61WPZB191 | A2FM180/61WPZB191J |
| A2FM180/61WPBB191 | A2FM180/61WPBB191J | A2FM180/61WPPB191 | A2FM180/61WPPB191J |
| A2FM180/61WVAB191 | A2FM180/61WVAB191J | A2FM180/61WVZB191 | A2FM180/61WVZB191J |
| A2FM180/61WVBB191 | A2FM180/61WVBB191J | A2FM180/61WVPB191 | A2FM180/61WVPB191J |
| A2FM180/61WPAB192 | A2FM180/61WPAB192J | A2FM180/61WPZB192 | A2FM180/61WPZB192J |
| A2FM180/61WPBB192 | A2FM180/61WPBB192J | A2FM180/61WPPB192 | A2FM180/61WPPB192J |
| A2FM180/61WVAB192 | A2FM180/61WVAB192J | A2FM180/61WVZB192 | A2FM180/61WVZB192J |
| A2FM180/61WVBB192 | A2FM180/61WVBB192J | A2FM180/61WVPB192 | A2FM180/61WVPB192J |
| A2FM180/61WPAB188 | A2FM180/61WPAB188J | A2FM180/61WPZB188 | A2FM180/61WPZB188J |
| A2FM180/61WPBB188 | A2FM180/61WPBB188J | A2FM180/61WPPB188 | A2FM180/61WPPB188J |
| A2FM180/61WVAB188 | A2FM180/61WVAB188J | A2FM180/61WVZB188 | A2FM180/61WVZB188J |
| A2FM180/61WVBB188 | A2FM180/61WVBB188J | A2FM180/61WVPB188 | A2FM180/61WVPB188J |
| A2FM200/63WPAB010 | A2FM200/63WPAB010J | A2FM200/63WPZB010 | A2FM200/63WPZB010J |
| A2FM200/63WPBB010 | A2FM200/63WPBB010J | A2FM200/63WPPB010 | A2FM200/63WPPB010J |
| A2FM200/63WVAB010 | A2FM200/63WVAB010J | A2FM200/63WVZB010 | A2FM200/63WVZB010J |
| A2FM200/63WVBB010 | A2FM200/63WVBB010J | A2FM200/63WVPB010 | A2FM200/63WVPB010J |
| A2FM250/60WPZB010 | A2FM250/60WPZB010J | A2FM250/60WVZB010 | A2FM250/60WVZB010J |
| A2FM250/60WPPB010 | A2FM250/60WPPB010J | A2FM250/60WVPB010 | A2FM250/60WVPB010J |
| A2FM250/60WPZB020 | A2FM250/60WPZB020J | A2FM250/60WVZB020 | A2FM250/60WVZB020J |
| A2FM250/60WPPB020 | A2FM250/60WPPB020J | A2FM250/60WVPB020 | A2FM250/60WVPB020J |
| A2FM250/60WPZB027F | A2FM250/60WPZB027FJ | A2FM250/60WVZB027F | A2FM250/60WVZB027FJ |
| A2FM250/60WPPB027F | A2FM250/60WPPB027FJ | A2FM250/60WVPB027F | A2FM250/60WVPB027FJ |
| A2FM250/60WPZB010F | A2FM250/60WPZB010FJ | A2FM250/60WVZB010F | A2FM250/60WVZB010FJ |
| A2FM250/60WPPB010F | A2FM250/60WPPB010FJ | A2FM250/60WVPB010F | A2FM250/60WVPB010FJ |
| A2FM250/60WPZB020F | A2FM250/60WPZB020FJ | A2FM250/60WVZB020F | A2FM250/60WVZB020FJ |
| A2FM250/60WPPB020F | A2FM250/60WPPB020FJ | A2FM250/60WVPB020F | A2FM250/60WVPB020FJ |
| A2FM250/60WPZB027H | A2FM250/60WPZB027HJ | A2FM250/60WVZB027H | A2FM250/60WVZB027HJ |
| A2FM250/60WPPB027H | A2FM250/60WPPB027HJ | A2FM250/60WVPB027H | A2FM250/60WVPB027HJ |
| A2FM250/60WPZB010H | A2FM250/60WPZB010HJ | A2FM250/60WVZB010H | A2FM250/60WVZB010HJ |
| A2FM250/60WPPB010H | A2FM250/60WPPB010HJ | A2FM250/60WVPB010H | A2FM250/60WVPB010HJ |
| A2FM250/60WPZB020H | A2FM250/60WPZB020HJ | A2FM250/60WVZB020H | A2FM250/60WVZB020HJ |
| A2FM250/60WPPB020H | A2FM250/60WPPB020HJ | A2FM250/60WVPB020H | A2FM250/60WVPB020HJ |
| A2FLM250/60WPZB027 | A2FLM250/60WPZB027J | A2FLM250/60WVZB027 | A2FLM250/60WVZB027J |
| A2FLM250/60WPPB027 | A2FLM250/60WPPB027J | A2FLM250/60WVPB027 | A2FLM250/60WVPB027J |
| A2FLM250/60WPZB010 | A2FLM250/60WPZB010J | A2FLM250/60WVZB010 | A2FLM250/60WVZB010J |
| A2FLM250/60WPPB010 | A2FLM250/60WPPB010J | A2FLM250/60WVPB010 | A2FLM250/60WVPB010J |
| A2FLM250/60WPZB020 | A2FLM250/60WPZB020J | A2FLM250/60WVZB020 | A2FLM250/60WVZB020J |
| A2FLM250/60WPPB020 | A2FLM250/60WPPB020J | A2FLM250/60WVPB020 | A2FLM250/60WVPB020J |
| A2FLM250/60WPZB027F | A2FLM250/60WPZB027FJ | A2FLM250/60WVZB027F | A2FLM250/60WVZB027FJ |
| A2FLM250/60WPPB027F | A2FLM250/60WPPB027FJ | A2FLM250/60WVPB027F | A2FLM250/60WVPB027FJ |
| A2FLM250/60WPZB010F | A2FLM250/60WPZB010FJ | A2FLM250/60WVZB010F | A2FLM250/60WVZB010FJ |
| A2FLM250/60WPPB010F | A2FLM250/60WPPB010FJ | A2FLM250/60WVPB010F | A2FLM250/60WVPB010FJ |
| A2FLM250/60WPZB020F | A2FLM250/60WPZB020FJ | A2FLM250/60WVZB020F | A2FLM250/60WVZB020FJ |
| A2FLM250/60WPPB020F | A2FLM250/60WPPB020FJ | A2FLM250/60WVPB020F | A2FLM250/60WVPB020FJ |
| A2FLM250/60WPZB027H | A2FLM250/60WPZB027HJ | A2FLM250/60WVZB027H | A2FLM250/60WVZB027HJ |
| A2FLM250/60WPPB027H | A2FLM250/60WPPB027HJ | A2FLM250/60WVPB027H | A2FLM250/60WVPB027HJ |
| A2FLM250/60WPZB010H | A2FLM250/60WPZB010HJ | A2FLM250/60WVZB010H | A2FLM250/60WVZB010HJ |
| A2FLM250/60WPPB010H | A2FLM250/60WPPB010HJ | A2FLM250/60WVPB010H | A2FLM250/60WVPB010HJ |
| A2FLM250/60WPZB020H | A2FLM250/60WPZB020HJ | A2FLM250/60WVZB020H | A2FLM250/60WVZB020HJ |
| A2FLM250/60WPPB020H | A2FLM250/60WPPB020HJ | A2FLM250/60WVPB020H | A2FLM250/60WVPB020HJ |
| A2FM355/60WPZH017 | A2FM355/60WPZH017J | A2FM355/60WVZH017 | A2FM355/60WVZH017J |
| A2FM355/60WPPH017 | A2FM355/60WPPH017J | A2FM355/60WVPH017 | A2FM355/60WVPH017J |
| A2FM355/60WPZH010 | A2FM355/60WPZH010J | A2FM355/60WVZH010 | A2FM355/60WVZH010J |
| A2FM355/60WPPH010 | A2FM355/60WPPH010J | A2FM355/60WVPH010 | A2FM355/60WVPH010J |
| A2FM355/60WPZH017F | A2FM355/60WPZH017FJ | A2FM355/60WVZH017F | A2FM355/60WVZH017FJ |
| A2FM355/60WPPH017F | A2FM355/60WPPH017FJ | A2FM355/60WVPH017F | A2FM355/60WVPH017FJ |
| A2FM355/60WPZH010F | A2FM355/60WPZH010FJ | A2FM355/60WVZH010F | A2FM355/60WVZH010FJ |
| A2FM355/60WPPH010F | A2FM355/60WPPH010FJ | A2FM355/60WVPH010F | A2FM355/60WVPH010FJ |
| A2FM355/60WPZH017H | A2FM355/60WPZH017HJ | A2FM355/60WVZH017H | A2FM355/60WVZH017HJ |
| A2FM355/60WPPH017H | A2FM355/60WPPH017HJ | A2FM355/60WVPH017H | A2FM355/60WVPH017HJ |
| A2FM355/60WPZH010H | A2FM355/60WPZH010HJ | A2FM355/60WVZH010H | A2FM355/60WVZH010HJ |
| A2FM355/60WPPH010H | A2FM355/60WPPH010HJ | A2FM355/60WVPH010H | A2FM355/60WVPH010HJ |
| A2FLM355/60WPZH017 | A2FLM355/60WPZH017J | A2FLM355/60WVZH017 | A2FLM355/60WVZH017J |
| A2FLM355/60WPPH017 | A2FLM355/60WPPH017J | A2FLM355/60WVPH017 | A2FLM355/60WVPH017J |
| A2FLM355/60WPZH010 | A2FLM355/60WPZH010J | A2FLM355/60WVZH010 | A2FLM355/60WVZH010J |
| A2FLM355/60WPPH010 | A2FLM355/60WPPH010J | A2FLM355/60WVPH010 | A2FLM355/60WVPH010J |
| A2FLM355/60WPZH017F | A2FLM355/60WPZH017FJ | A2FLM355/60WVZH017F | A2FLM355/60WVZH017FJ |
| A2FLM355/60WPPH017F | A2FLM355/60WPPH017FJ | A2FLM355/60WVPH017F | A2FLM355/60WVPH017FJ |
| A2FLM355/60WPZH010F | A2FLM355/60WPZH010FJ | A2FLM355/60WVZH010F | A2FLM355/60WVZH010FJ |
| A2FLM355/60WPPH010F | A2FLM355/60WPPH010FJ | A2FLM355/60WVPH010F | A2FLM355/60WVPH010FJ |
| A2FLM355/60WPZH017H | A2FLM355/60WPZH017HJ | A2FLM355/60WVZH017H | A2FLM355/60WVZH017HJ |
| A2FLM355/60WPPH017H | A2FLM355/60WPPH017HJ | A2FLM355/60WVPH017H | A2FLM355/60WVPH017HJ |
| A2FLM355/60WPZH010H | A2FLM355/60WPZH010HJ | A2FLM355/60WVZH010H | A2FLM355/60WVZH010HJ |
| A2FLM355/60WPPH010H | A2FLM355/60WPPH010HJ | A2FLM355/60WVPH010H | A2FLM355/60WVPH010HJ |
| A2FM500/60WPZH017 | A2FM500/60WPZH017J | A2FM500/60WVZH017 | A2FM500/60WVZH017J |
| A2FM500/60WPPH017 | A2FM500/60WPPH017J | A2FM500/60WVPH017 | A2FM500/60WVPH017J |
| A2FM500/60WPZH010 | A2FM500/60WPZH010J | A2FM500/60WVZH010 | A2FM500/60WVZH010J |
| A2FM500/60WPPH010 | A2FM500/60WPPH010J | A2FM500/60WVPH010 | A2FM500/60WVPH010J |
| A2FM500/60WPZH017F | A2FM500/60WPZH017FJ | A2FM500/60WVZH017F | A2FM500/60WVZH017FJ |
| A2FM500/60WPPH017F | A2FM500/60WPPH017FJ | A2FM500/60WVPH017F | A2FM500/60WVPH017FJ |
| A2FM500/60WPZH010F | A2FM500/60WPZH010FJ | A2FM500/60WVZH010F | A2FM500/60WVZH010FJ |
| A2FM500/60WPPH010F | A2FM500/60WPPH010FJ | A2FM500/60WVPH010F | A2FM500/60WVPH010FJ |
| A2FM500/60WPZH017H | A2FM500/60WPZH017HJ | A2FM500/60WVZH017H | A2FM500/60WVZH017HJ |
| A2FM500/60WPPH017H | A2FM500/60WPPH017HJ | A2FM500/60WVPH017H | A2FM500/60WVPH017HJ |
| A2FM500/60WPZH010H | A2FM500/60WPZH010HJ | A2FM500/60WVZH010H | A2FM500/60WVZH010HJ |
| A2FM500/60WPPH010H | A2FM500/60WPPH010HJ | A2FM500/60WVPH010H | A2FM500/60WVPH010HJ |
| A2FLM500/60WPZH017 | A2FLM500/60WPZH017J | A2FLM500/60WVZH017 | A2FLM500/60WVZH017J |
| A2FLM500/60WPPH017 | A2FLM500/60WPPH017J | A2FLM500/60WVPH017 | A2FLM500/60WVPH017J |
| A2FLM500/60WPZH010 | A2FLM500/60WPZH010J | A2FLM500/60WVZH010 | A2FLM500/60WVZH010J |
| A2FLM500/60WPPH010 | A2FLM500/60WPPH010J | A2FLM500/60WVPH010 | A2FLM500/60WVPH010J |
| A2FLM500/60WPZH017F | A2FLM500/60WPZH017FJ | A2FLM500/60WVZH017F | A2FLM500/60WVZH017FJ |
| A2FLM500/60WPPH017F | A2FLM500/60WPPH017FJ | A2FLM500/60WVPH017F | A2FLM500/60WVPH017FJ |
| A2FLM500/60WPZH010F | A2FLM500/60WPZH010FJ | A2FLM500/60WVZH010F | A2FLM500/60WVZH010FJ |
| A2FLM500/60WPPH010F | A2FLM500/60WPPH010FJ | A2FLM500/60WVPH010F | A2FLM500/60WVPH010FJ |
| A2FLM500/60WPZH017H | A2FLM500/60WPZH017HJ | A2FLM500/60WVZH017H | A2FLM500/60WVZH017HJ |
| A2FLM500/60WPPH017H | A2FLM500/60WPPH017HJ | A2FLM500/60WVPH017H | A2FLM500/60WVPH017HJ |
| A2FLM500/60WPZH010H | A2FLM500/60WPZH010HJ | A2FLM500/60WVZH010H | A2FLM500/60WVZH010HJ |
| A2FLM500/60WPPH010H | A2FLM500/60WPPH010HJ | A2FLM500/60WVPH010H | A2FLM500/60WVPH010HJ |
| A2FLM710/60WPZH017 | A2FLM710/60WPZH017J | A2FLM710/60WVZH017 | A2FLM710/60WVZH017J |
| A2FLM710/60WPPH017 | A2FLM710/60WPPH017J | A2FLM710/60WVPH017 | A2FLM710/60WVPH017J |
| A2FLM710/60WPZH010 | A2FLM710/60WPZH010J | A2FLM710/60WVZH010 | A2FLM710/60WVZH010J |
| A2FLM710/60WPPH010 | A2FLM710/60WPPH010J | A2FLM710/60WVPH010 | A2FLM710/60WVPH010J |
| A2FLM710/60WPZH017 | A2FLM710/60WPZH017J | A2FLM710/60WVZH017 | A2FLM710/60WVZH017J |
| A2FLM710/60WPPH017 | A2FLM710/60WPPH017J | A2FLM710/60WVPH017 | A2FLM710/60WVPH017J |
| A2FLM710/60WPZH010 | A2FLM710/60WPZH010J | A2FLM710/60WVZH010 | A2FLM710/60WVZH010J |
| A2FLM710/60WPPH010 | A2FLM710/60WPPH010J | A2FLM710/60WVPH010 |
A2FLM710/60WVPH010J |
- A2FM 모터는 개방 및 폐쇄 회로에 사용하도록 설계되었습니다.
- 축 방향 피스톤 장치의 프로젝트 계획, 설치 및 시운전은 자격을 갖춘 직원이 수행해야합니다.
- 축 피스톤 장치를 사용하기 전에 해당 명령 매뉴얼을 완전히 읽으십시오. Bosch Rexroth의 요청에 따라 제공됩니다.
- 작동 중 및 수술 직후 축 피스톤 장치의 화상 위험. 적절한 안전 조치를 취해야합니다 (예 : 보호 의류 착용).
- 축 피스톤 장치의 특성은 다른 작동 조건 (작동 압력, 유체 온도)으로 인해 달라질 수 있습니다.
- 작업 라인 포트 :
· 포트 및 고정 스레드는 최대 지정된 압력을 위해 설계되었습니다. 기계 또는 시스템 제조업체는 연결 요소 및 라인의 안전 요소가 지정된 작동 조건 (압력, 흐름, 유압 오일, 온도)을 충족하도록해야합니다.
• 작업 라인 포트 및 기능 포트는 유압 라인만을위한 것입니다.
- 여기에 포함 된 데이터 및 지침을 따라야합니다.
- 제품은 ISO13849의 기계의 일반적인 안전 개념에 따라 구성 요소로 승인 할 수 없습니다.
- 다음 조임 토크를 사용하십시오.
· 커넥터 :
사용 된 피팅의 조임 토크에 대한 제조업체의 지침을 참조하십시오.
· 볼트 장착 :
ASMEB1.1에 따라 DIN13 및 스레드에 따라 ISO 메트릭 스레드가 장착 된 볼트의 경우 VDI2230에 따라 개별 하우징의 강화 토크를 확인하는 것이 좋습니다.
· 축 피스톤 장치 용 나사 구멍 :
최대 허용 조임 토크 MGMAX는 나사산 구멍의 최대 값이며 초과해서는 안됩니다.
· 잠금 나사 :
축 피스톤 장치가 공급 된 금속 잠금 나사의 경우 잠금 나사에 필요한 조임 토크 MV를 사용해야합니다.
설치 예방 조치
시운전 및 작동 중에 축 피스톤 장치는 항상 유압 오일로 채워져 공기로 배출되어야합니다. 축 방향 피스톤 장치는 유압 라인을 통해 유압 오일을 탱크로 다시 배출 할 수 있기 때문에 상기 예방 조치는 비교적 긴 비 활동 후에도 관찰되어야합니다.
특히 "변속기 샤프트 업"설치 위치에서 오일 충전 및 배기가 철저히 수행되어야합니다. 그렇지 않으면 오일이없는 작동과 같은 위험이 있습니다.
펌프 하우징의 배수 오일은 가장 높은 배수구 (T1, T2)를 통해 탱크에 배수되어야합니다.
여러 장치의 조합의 경우 각 장치의 해당 압력이 초과되지 않도록하십시오. 장비의 배수 포트에 차압이 존재하는 경우, 모든 연결된 장비의 최소 허용 압력이 어떤 상황에서도 초과되지 않도록 공통 배수 라인을 교체해야합니다. 이것이 불가능한 경우, 필요한 경우 별도의 배수 라인을 놓아야합니다.
유리한 노이즈 값을 얻으려면 모든 연결 라인을 탄성 요소로 분리하고 탱크 위의 설치를 피해야합니다.
모든 작동 조건에서 배수 라인은 탱크의 최소 오일 레벨보다 낮은 지점으로 이어져야합니다.
Tags:
화면
화면
화면
화면
